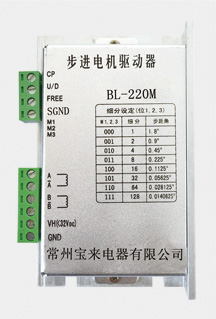

BL-220M





Match motor2 or 4 Phases Stepping Motor( I 2A/Phase )
Number of Phase        2 or 4
Num. of Microstep      248163264128
Max.Current 2A/Phase
Current Regulation 0.1-2A continuously adjustable
Operating Voltage DC12-32V
Drive Mode Constant current chopper

Set the number of segmentsON=0OFF=1

Bit 1,2,3

000

001

010

011

100

101

110

111

Subdivision

1

2

4

8

16

32

64

128




Wiring Diagram:
Outline:
