20BY20H04B-22JX




Applications£ºTap control¡¢Air door control ¡¢Medical machine¡¢Robot
Ambient Temperature:    -10¡æ¡ª+55¡æ
Insulation Resistance:  500V DC 50M¦¸MIN
Insulation Class:   E


Specifications

Model


Step Angle
(Deg)


Gear Ratio

No.of
Phase


Voltage
(V)

Current
(A)

Resistance
(¦¸)


Pull-in Rate
(PPS)


Pull-in Torque
(N.cm)


Wdg


Length(mm)


Weight
£¨g£©

PDF

20BY20H04B-22JX100

18/100

1:100

4

4.5

0.12

38

400

7(150pps)

a

32

80

20BY20H04B-22JX189

18/189

1:189

4

4.5

0.12

38

400

12.5(150pps)

a

37

80

20BY20H04B-22JX264

18/264

1:264

4

4.5

0.12

38

400

17.4(150pps)

a

37

80

20BY20H04B-22JX369
18/369
1:369
4
4.5
0.12
38
400
24.3(150pps)
a
37
80
20BY20H04B-22JX516
18/516
1:516
4
4.5
0.12
38
400
34(150pps)
a
37
80
20BY20H04B-22JX720
18/720
1:720
4
4.5
0.12
38
400
47.5(150pps)
a
37
80

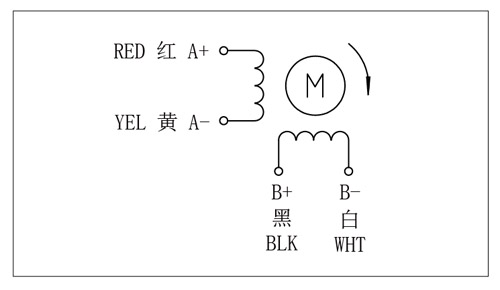

Wiring Diagram

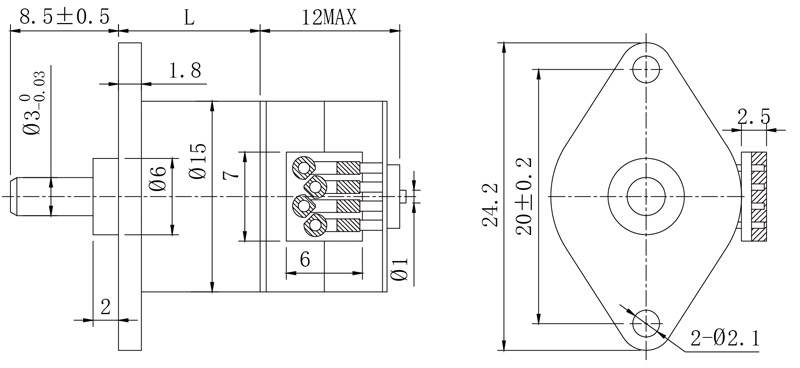

Figure Dimensions (unit =mm)
