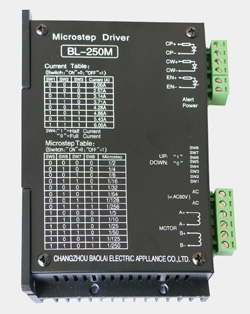

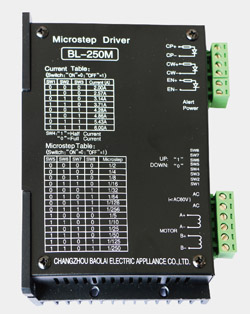

BL-250M




Match motor86BYGH250/250A/250B
Number of Phase: 2 or 4
Num. of Microstep: 2-1285-250
Max.Current: 6A/Phase
Current Regulation: 2-6A
Operating Voltage: AC30-60V(DC40-80V)
Drive Mode: Chopper Current


Set the number of segmentsON=0OFF=1


Bit 5,6,7,8

0000

0100

0010

0110

0001

0101

0011

0111

Subdivision

2

4

8

16

32

64

128

256

Bit 5,6,7,8
1000
1100
1010
1110
1001
1101
Subdivision
5
10
25
50
125
250



Wiring Diagram:
Outline:
