  Products

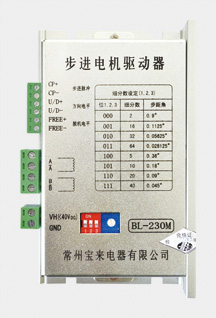

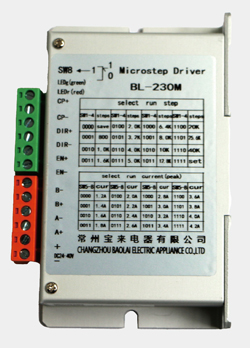

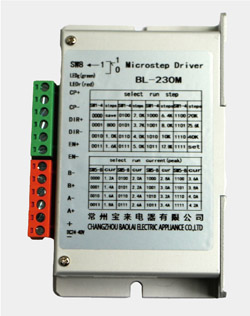

BL-230M





Match motor£º2 or 4 Phases Stepping Motor( I ¡Ü 3A/Phase )
Number of Phase 2 or 4
Num. of Microstep 2¡¢16¡¢32¡¢64¡¢5¡¢10¡¢20¡¢40
Max.Current 3A/Phase
Current Regulation 0.2-3A Continuously adjustable
Operating Voltage DC24-40V
Drive Mode Constant current chopper


¡öSet the number of segments£¨ON=0£¬OFF=1£©


Bit 1,2,3

000

001

010

011

100

101

110

111

Subdivision

2

16

32

64

5

10

20

40

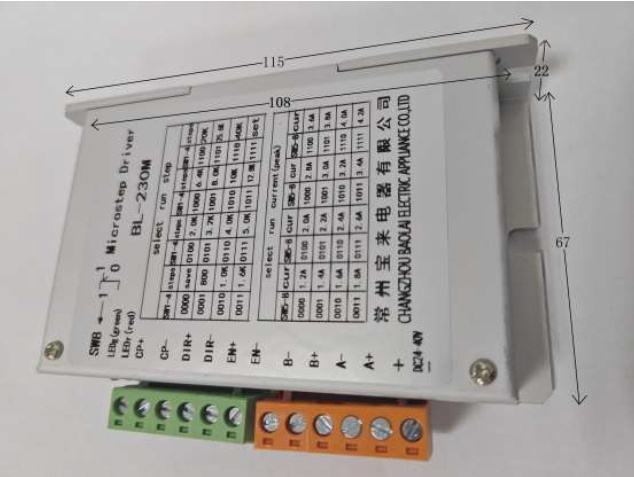

Outline:

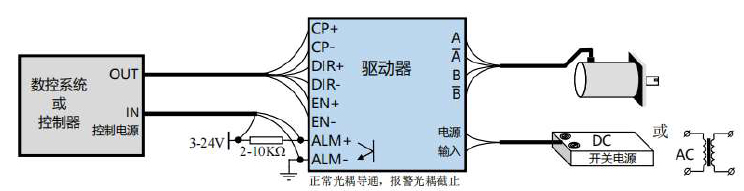

Wiring Diagram:
